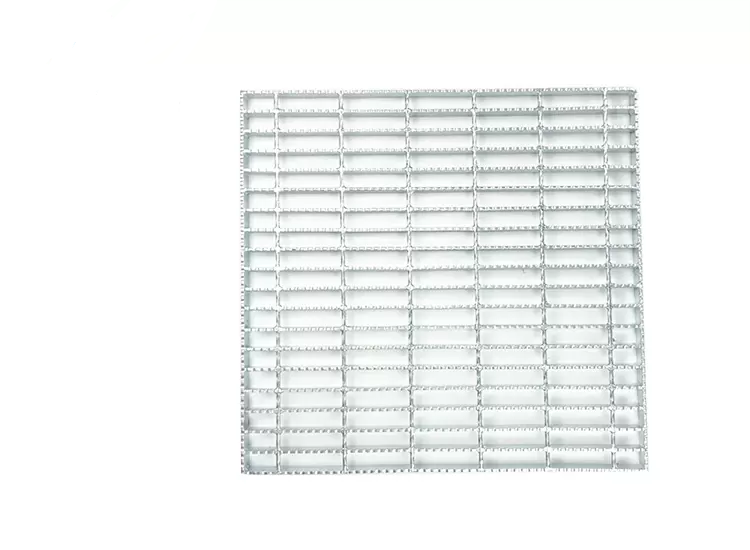

Custom toothed steel grating
Phone : +86 15165138797
WeChat : +86 15165138797
WhatsApp : +86 15165138797
Email : sales2@sdbaowu.com
CONTACT US

Product Description

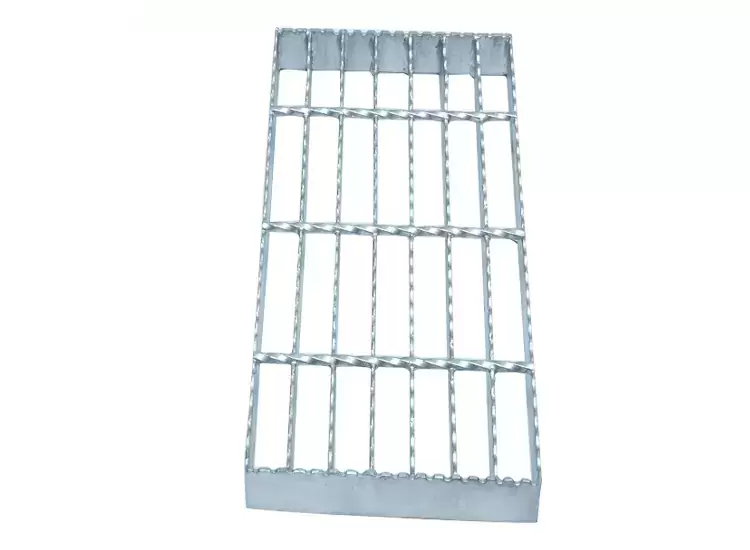

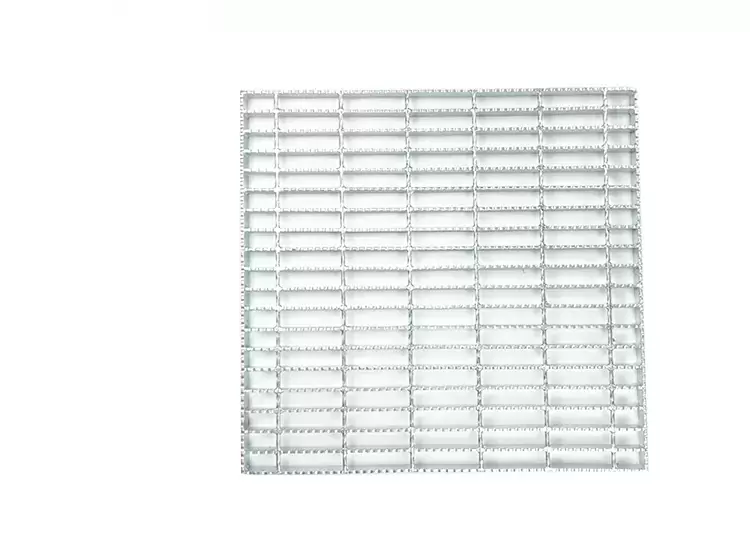

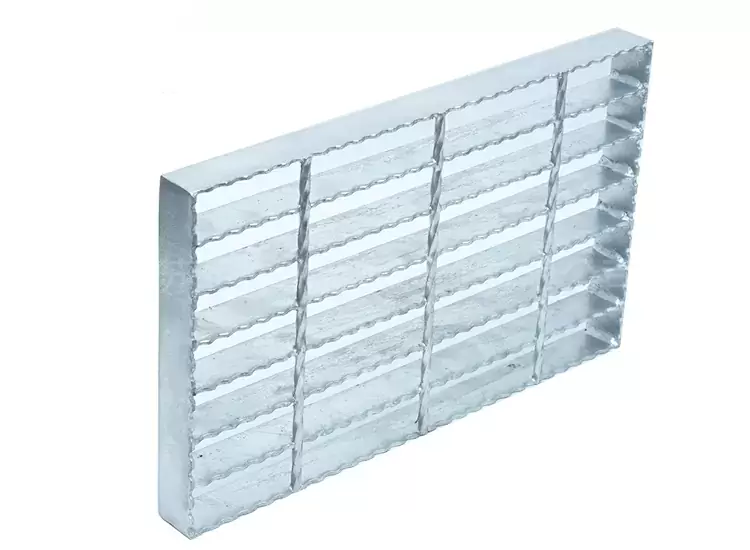

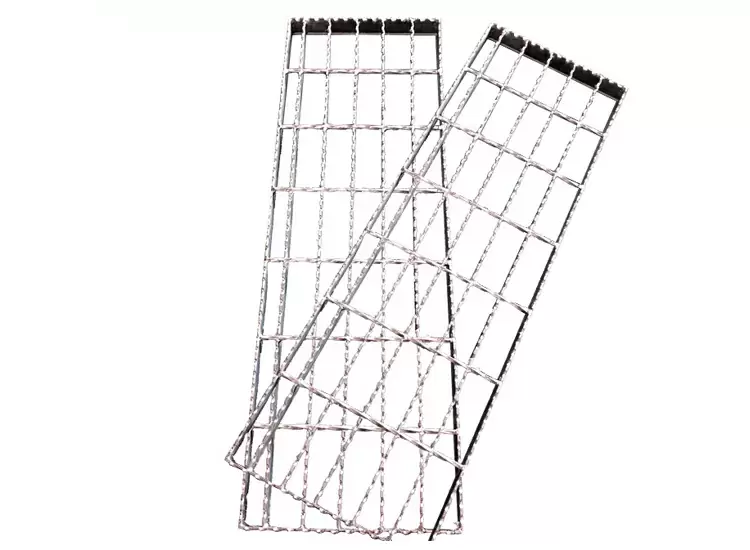

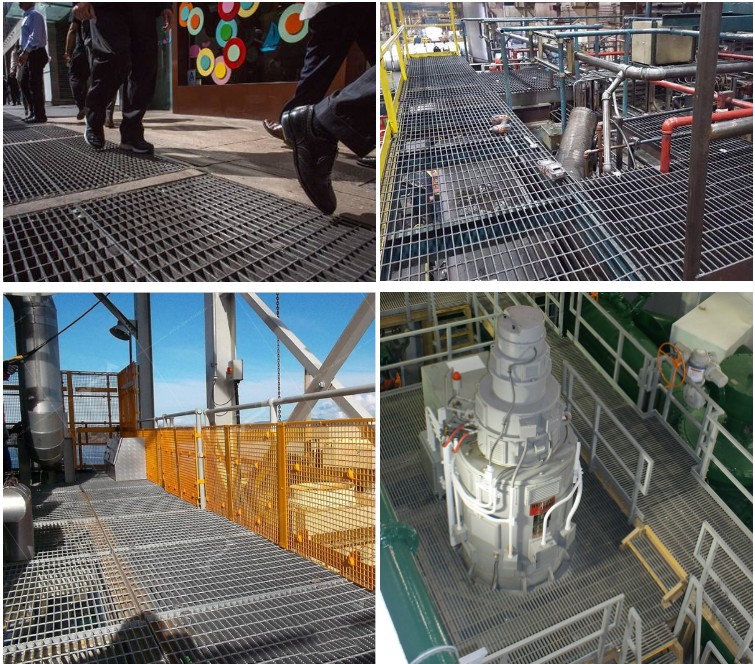

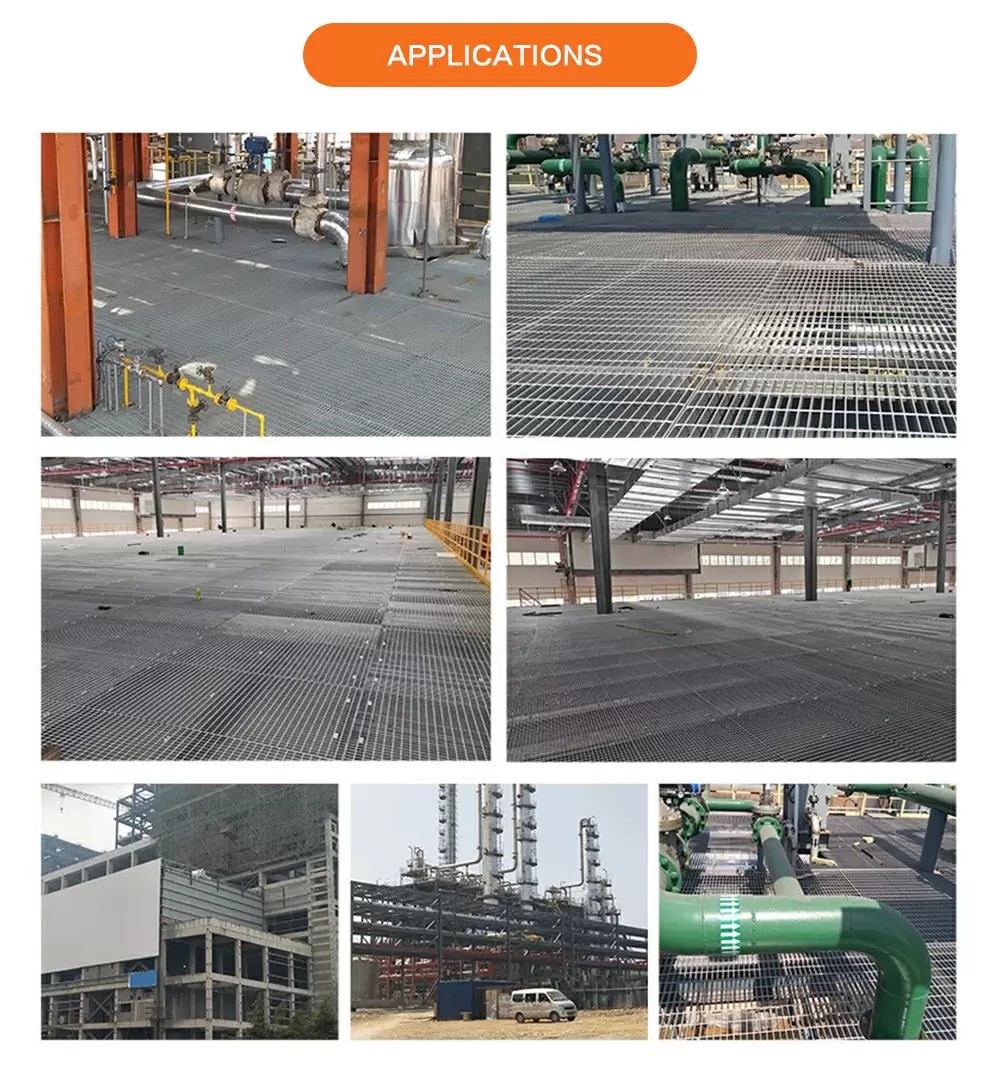

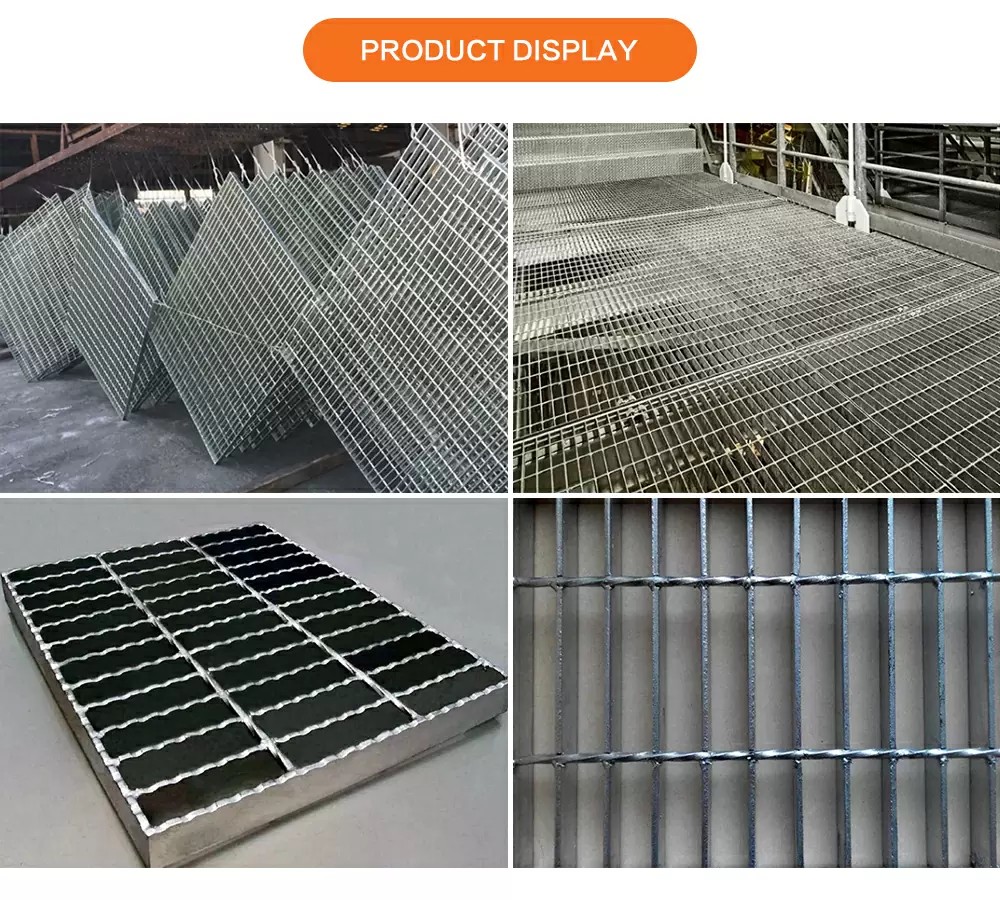

Toothed steel grating is also called serrated steel grating, anti-skid steel grating, etc. It is made of flat steel with a zigzag shape on one side and twisted square steel. One side of the flat steel with zigzag is welded with twisted steel, which has a very strong anti-slip effect, especially when the slope is greater than 5° to 20°. It is very suitable for application in wet and smooth places, such as: chemical plants, offshore oil production platforms, sewage treatment plants, etc.

The toothed steel grating has the characteristics of light weight, strong bearing capacity, easy cleaning, ventilation, lighting, heat dissipation, explosion-proof, etc. It can be used in conjunction with frame hinges as a ditch cover, and has the characteristics of anti-theft and safety.

The tooth-shaped steel grating is treated with hot-dip galvanizing, which has the characteristics of long service life and not easy to rust.

Toothed steel grating can be made of Q235 low-carbon flat steel, stainless steel or brass flat steel, and can be cross-welded with twisted steel, or flat steel and flat steel.

product namesteel grating
Bearing Bar25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etcI bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etcUS standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing Bar Pitch12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etcUS standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Material GradeASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc
Surface TreatmentBlack, self colour, hot dip galvanized, painted, spray coating

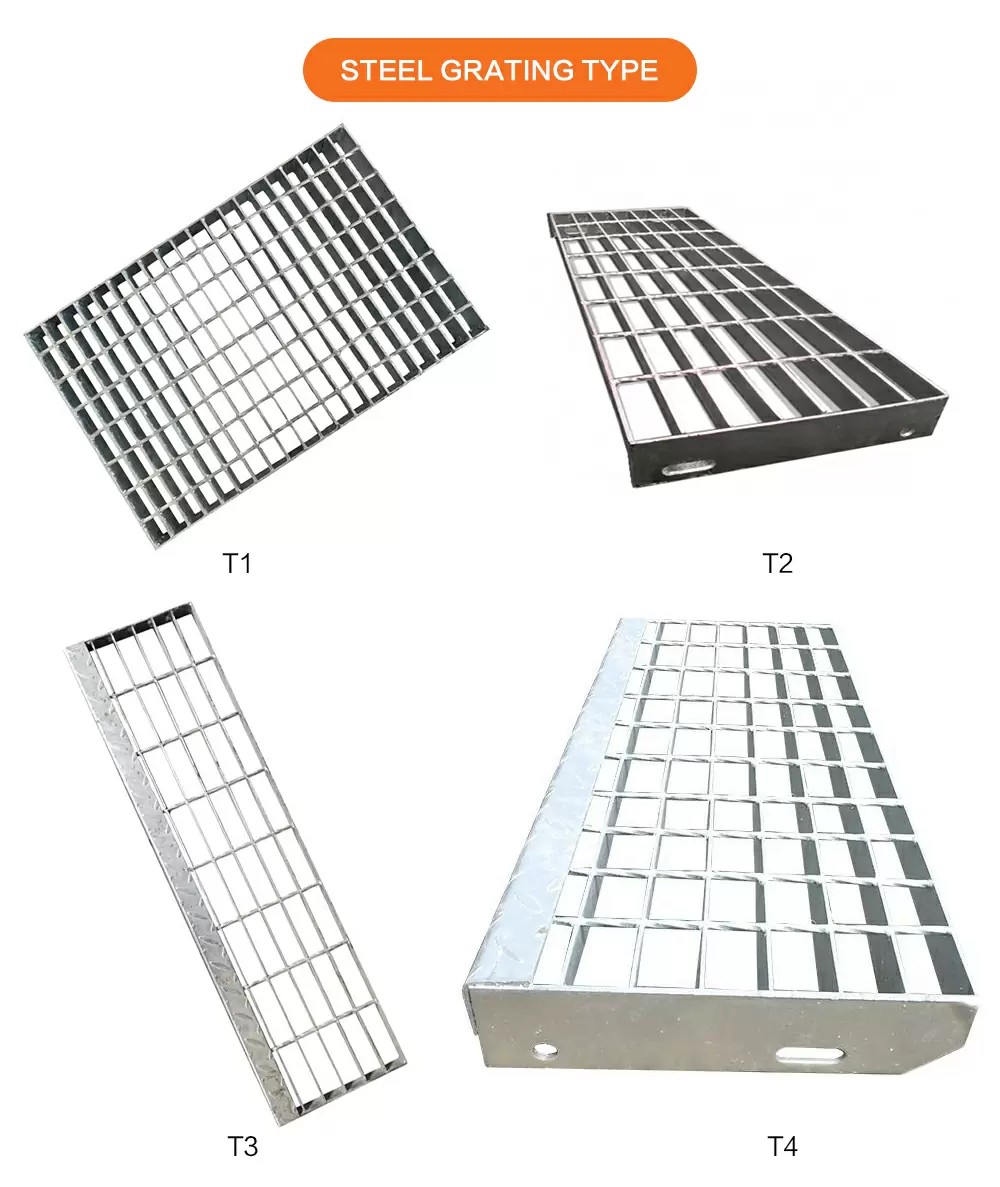

Grating StylePlain / Smooth, Serrated /teeth, I bar, serrated I bar
StandardChina: YB/T 4001.1-2007,  USA: ANSI/NAAMM(MBG531-88),UK: BS4592-1987,  Australia: AS1657-1985,Germany: DIN24537-1-2006, Japan :JIS
