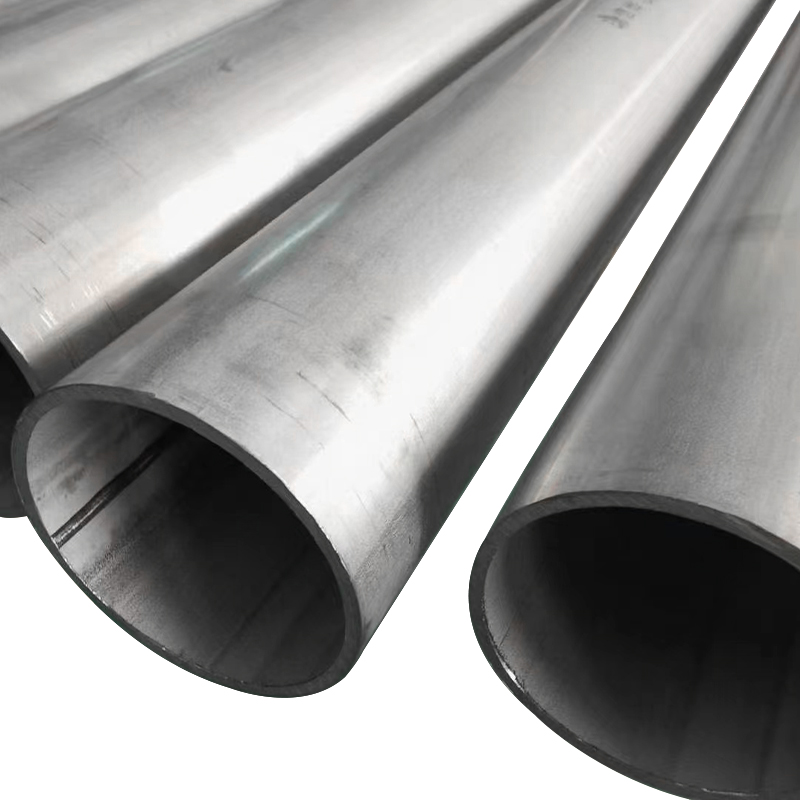

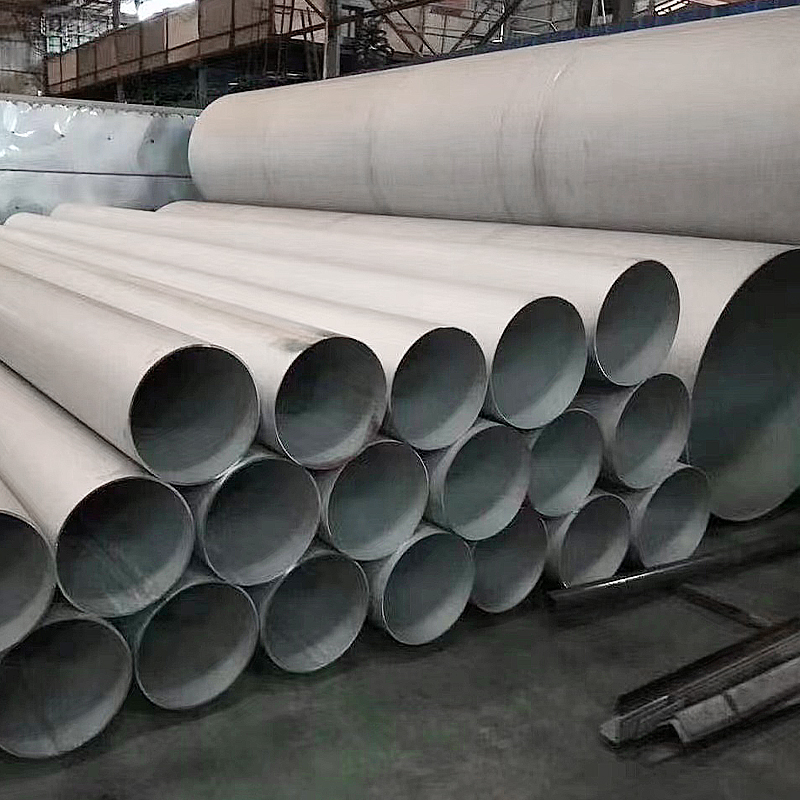

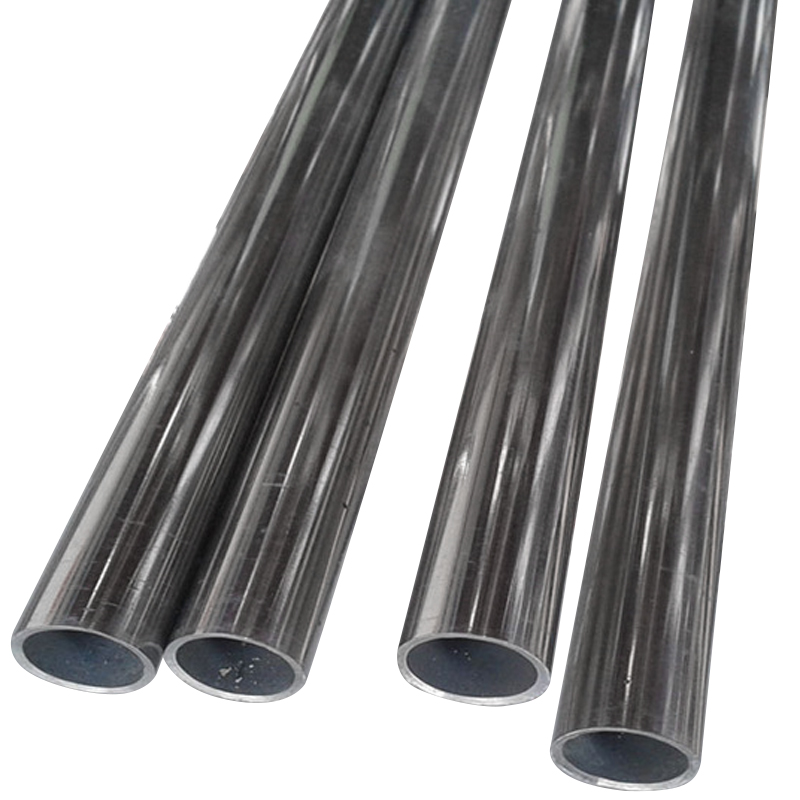

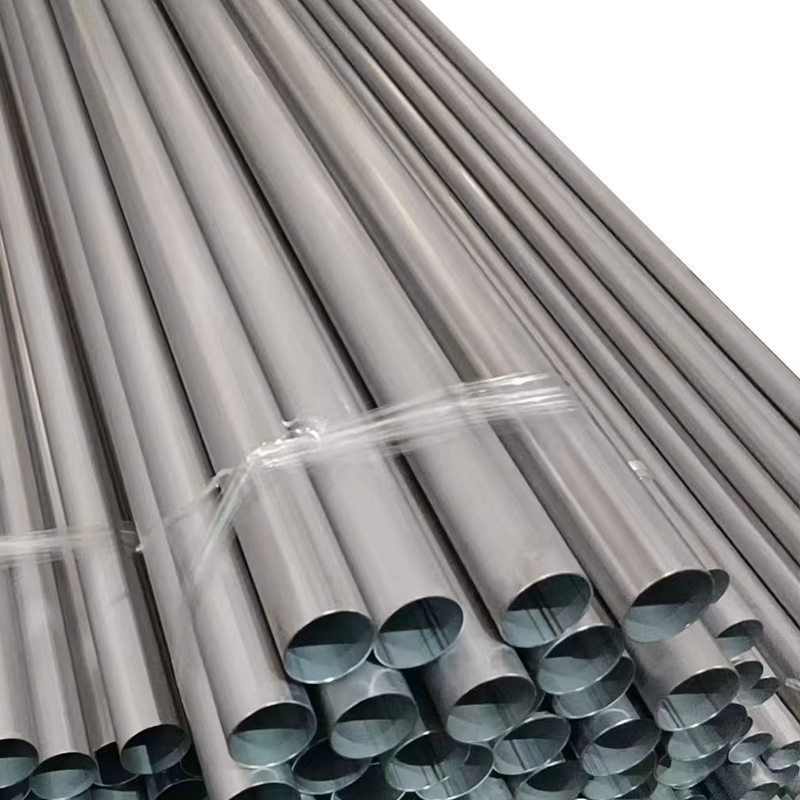

Stainless steel pipe/tube is a kind of hollow long circular steel, mainly widely used in petroleum, chemical, medical, food, light industry, machinery instrument and other industrial conveying pipes and mechanical structure components. In addition, the bending, torsional strength is the same, the weight is light, so it is also widely used in the manufacture of mechanical parts and engineering structures. Also commonly used for furniture kitchenware and so on.
| Product Name | Stainless Steel Pipe |
| Material type | Stainless steel square tube pipe |
| Items | Square tubes, rectangular tubes, round tubes |
| Thickness | 0.5~75mm |
| Specifications | 1. Outer diameter (pipe):1) Round tube: 8mm to 680 mm2) Square tube: 10x10mm to 300x300mm3) Rectangular tube: 10x20mm to 120x180mmThickness: 0.16mm to 4.0mm |
| Surface | Polishing,annealing,pickling,bright |
| Technology | Cold/hot rolling |
| Steel Grade | 304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201,202 |
| Standard | ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456,DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605,GB13296 |
| Tolerance | a) Outer Diameter: +/- 0.5mmb) Thickness: +/- 0.05mmc) Length: +/- 5mm |
| Test | Squash test, extended test, water pressure test, crystal rot test, heat |
| Packing | Standard export packing |
| Payment | T/T, L/C, Western Union |
| Delivery time | 10 working days upon receipt of the deposit |
| MOQ | 1 ton |
| Application | Pipe: Decoration, Construction, Upholstery, Water supplying…handrail, railing, staircase, door, window, balcony, fence, bench, furniture etc, |
| Machining | Custom, Kaiping, cutting, pattern |
| Used | Factory, decoration, food |
| S31703 | 317L | 1.4438 | SUS317L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 11.0-15.0 | 3.0-4.0 |
| S32100 | 321 | 1.4541 | SUS321 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 17.0-19.0 | 9.0-12.0 | - |
| S34700 | 347 | 1.455 | SUS347 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 17.0-19.0 | 9.0-13.0 | - |
| S40500 | 405 | 1.4002 | SUS405 | ≤0.08 | ≤1.00 | ≤0.04 | ≤0.03 | ≤1.00 | 11.5-14.5 | ≤0.60 | - |
| S40900 | 409 | 1.4512 | SUS409 | ≤0.08 | ≤1.00 | ≤0.045 | ≤0.03 | ≤1.00 | 10.5-11.75 | ≤0.50 | - |
| S43000 | 430 | 1.4016 | SUS430 | ≤0.12 | ≤1.00 | ≤0.040 | ≤0.03 | ≤0.75 | 16.0-18.0 | ≤0.60 | - |
| S43400 | 434 | 1.4113 | SUS434 | ≤0.12 | ≤1.00 | ≤0.040 | ≤0.03 | ≤1.00 | 16.0-18.0 | - | - |
| S44400 | 444 | 1.4521 | SUS444L | ≤0.025 | ≤1.00 | ≤0.045 | ≤0.03 | ≤1.00 | 17.5-19.5 | ≤1.00 | - |
| S40300 | 403 | - | SUS403 | ≤0.15 | 5.5-7.5 | ≤0.04 | ≤0.03 | ≤0.50 | 11.5-13.0 | ≤0.60 | - |
| S410000 | 410 | 1.40006 | SUS410 | ≤0.15 | ≤1.00 | ≤0.035 | ≤0.03 | ≤1.00 | 11.5-13.5 | ≤0.60 | ≤1.00 |
| S42000 | 420 | 1.4021 | SUS420J1 | 0.16~0.25 | ≤1.00 | ≤0.04 | ≤0.03 | ≤1.00 | 12.0-14.0 | ≤0.75 | ≤1.00 |
| S440A | 440A | 1.4028 | SUS440A | 0.60~0.75 | ≤1.00 | ≤0.04 | ≤0.03 | ≤1.00 | 16.0-18.0 | - | ≤0.75 |
| S32750 | SAD2507 | 1.441 |
| ≤0.03 | ≤1.2 | ≤0.035 | ≤0.02 | ≤0.80 | 24.0-26.0 | 6.0-8.0 | 3.0-5.0 |
| S31803 | SAF2205 | 1.4462 |
| ≤0.03 | ≤2.0 | ≤0.03 | ≤0.02 | ≤1.00 | 21.0-23.0 | 4.0-6.5 | 2.5-3.5 |
| N08904 | 904L | 1.4539 |
| ≤0.0.3 | ≤2.0 | ≤0.035 | ≤0.03 | ≤1.00 | 18.0-20.0 | 23.0-25.0 | 3.0-4.0 |
