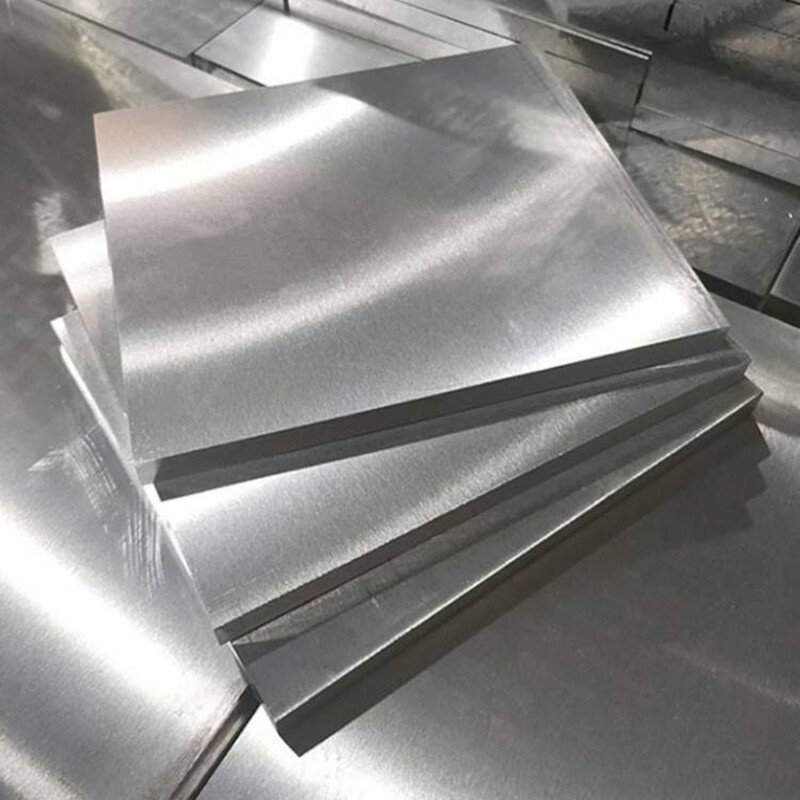

6150 Alloy Plate EN10083-3

Phone : +86 18354173223

WeChat : +86 18354173223

WhatsApp : +86 18354173223

Email : angel1@sdbaowu.com

Product Description

EN 10083-3:2006 steel is an alloy steel used for quenching and tempering. This standard regulates the technical delivery conditions of alloy steels. Under the steel 50CrMo4, 51CrV4, 20MnB5, 34CrMo4, 42CrMo4, 27MnCrB5-2. EN 10083-3 steel plate has high strength, high toughness and good hardenability. The alloy requires high temperature preheating before welding to eliminate the stress after welding.

Product Parameters

Product Name	4135/4140/4142/6150 Alloy Plate EN10083-3
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

Brand	C	Si max	Mn	P max	S max	Cr	Mo	V
34CrMo4	0.3-0.37	0.40	0.6-0.9	0.025	0.035	0.9-1.2	0.15-0.3	-
42CrMo4	0.38-0.45	0.40	0.6-0.9	0.025	0.035	0.9-1.2	0.15-0.3	-
50CrMo4	0.46-0.54	0.40	0.5-0.8	0.025	0.035	0.9-1.2	0.15-0.3	-
51CrV4	0.47-0.55	0.40	0.7-1.1	0.025	0.025	0.9-1.2	-	0.1-0.25

Mechanical Properties

Thickness	Re min. N/mm2	Rm N/mm2	A min%	From min%	KVb min J
≤8mm	900	1000-1300	10	40	-
8mm-20mm	750	1000-1200	11	45	35
20mm-60mm	650	900-1100	12	50	35
60mm-100mm	550	800-950	13	50	35
100mm-160mm	500	750-900	14	55	35

Scope of Application

EN 10083-3 steel plates are used to manufacture tools that require good plasticity and high strength. It is usually selected to manufacture large parts and important parts, such as heavy mechanical shafts, turbine shaft blades, high loads of transmission parts, fasteners, crankshafts, gears, and heavy-duty parts of motor structures.

Equivalent Material

European Standard	American Standard	German Standard	Japanese standard	National Standard	International Standards
34CrMo4	4135	34CrMo4	SCM435H	35CrMo	34CrMo4
42CrMo4	4140, 4142	42CrMo4	SCM440H	42CrMo	42CrMo4
50CrMo4	-	50CrMo4	-	50CrMo	50CrMo4
51CrV4	6150	50CrV4	SUP10	50CrVA	51CrV4
